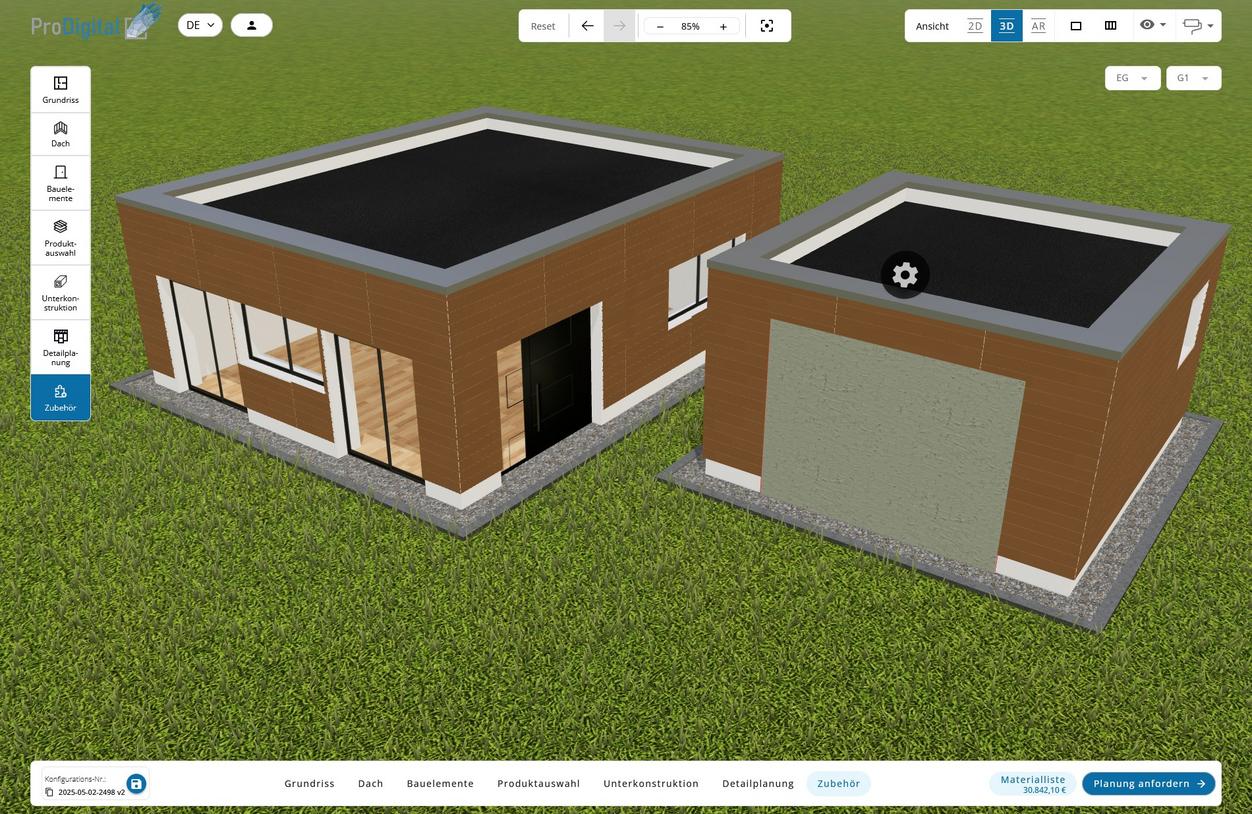

The world's only 3D cladding configurator with real material determination

In addition to the structure and design of the system, you can of course also incorporate your own corporate design (CI).

• Custom logo and CI colors
• Custom structure, query sequence, and custom design
• Custom letterhead and email body

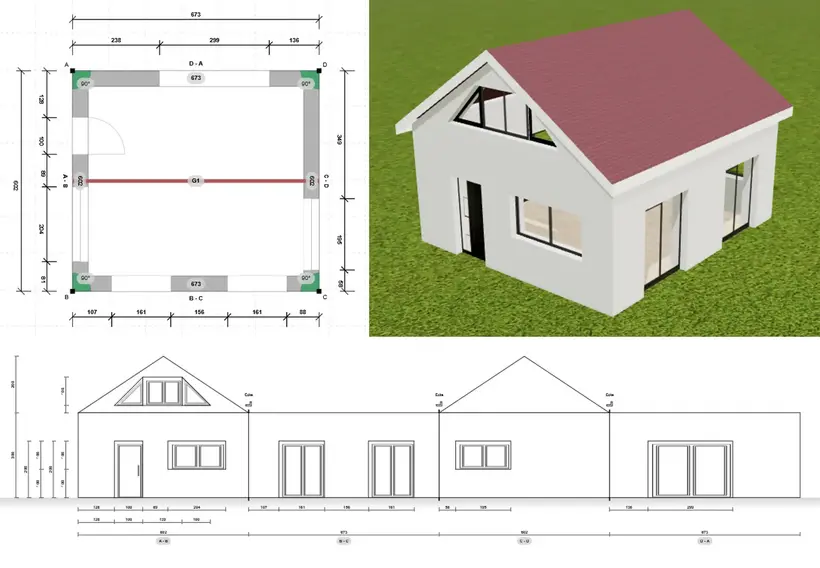

Depending on your preference, you can display the plan in 2D and/or 3D. Different view options allow you and your customers to focus on what is important to them.

• 2D view with precise dimensions
• 3D view of all elements, including drag & drop functions
• Elements can be shown or hidden for a better overview

Customize your PDF output file according to your preferences!

• Your own letterhead
• Free choice of which information to display
• Dynamic content – depending on the planned façade
• Multilingual

Multi-area planning allows you and your customers to recreate their building situation realistically.

• Planning multiple floor plans
• Freehand drawing for each individual floor plan
• Depiction of curved sides and rounded corners
• Subsequent addition and deletion of corner points
• Intuitive drawing options using drag & drop
• Precise drawing possible by entering dimensions

Design your roof according to your individual needs.

• Selection of predefined roof shapes (flat roof, gable roof, monopitch roof, hipped roof)
• Definition of roof heights and roof pitches
• Roof overhangs can be defined
• Display of different roof colors in 3D

After you have drawn a roof and defined the roof overhang, you can clad it.

• Plank selection
  Often, not all façade profiles can be used for cladding the roof overhang. The configurator distinguishes between them and only displays the possible planks here.
• Cladding type
  Plan your roof cladding as a roof box or directly on the roof beams.

• Profile direction
  In addition to the type of cladding, you can also specify the installation direction of the profiles to ensure maximum planning freedom.



As a rule, the plinth height must not be covered. The configurator plans a standard plinth height of 30 cm and does not cover this area.

Of course, the plinth height can be manually overwritten at a later date.

Of course, a house also includes building elements such as doors, windows, and other obstructions (balconies, etc.). Plan these easily using drag & drop.

• Predefined building elements
  In the ribbon, we create predefined building elements that can then be placed on the walls of the house using drag & drop.
• Manual modification option
  The position and dimensions of the components can be edited retrospectively to enable detailed planning.
• Copy function for components
  The identical properties of a component often appear multiple times in a design. We have therefore included a copy function for this purpose.
• Reveal depth and cladding
  The depth of the window reveals can be defined. You can also define for each building element whether you want to clad the reveal.

Our configurator recognizes the existing situation and then only displays the profiles that are permitted in that particular situation.

• Filter options
  The system automatically narrows down the selection. You can also define filter criteria to find the desired profile more quickly.
• Pictorial representation
  In the profile selection window, you can already place ambient images or similar as previews so that your customers and users get the best possible impression of your products.

Do you offer coloring for the floorboards? This can also be defined in the configurator. In addition, a pattern can also be predefined.

• Coloring option
  Can some of your floorboards be colored before delivery to the customer? Give your customers the option to specify this in the configurator and see the color immediately in their design.
• Repeat
  If you have different profile cross-sections that fit together, you can activate the repeat function. Here you can combine different profile cross-sections and different colors.

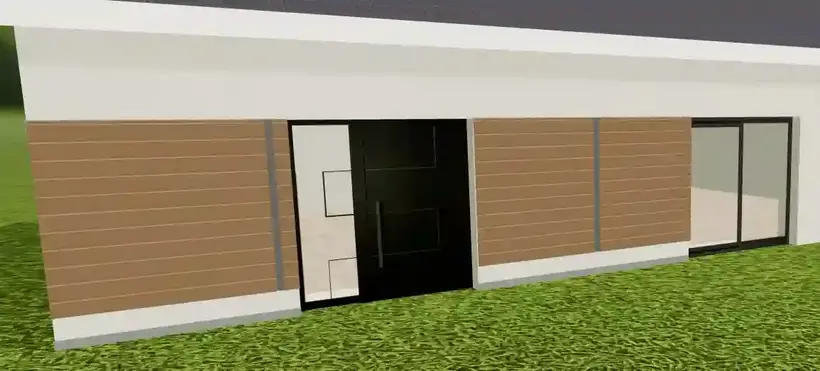

In many situations, it is desirable to clad only part of a wall. With the sub-area function, you can plan exactly this and thus plan individual construction projects quickly and easily.

• Subareas
  Subareas can be drawn in exactly the same way as the floor plan. You can then define whether the subarea should be empty or whether a facade profile should be placed there.
• Interruption points
  In order to achieve an optimal laying pattern, it is necessary to plan for a joint. Suitable locations for this can be door frames or windows. The configurator also masters this function as standard.

The calculation of the best cut to optimize costs is of course also available.

• Cut optimization with multiple plank lengths
  Different plank lengths are taken into account during cut optimization. This guarantees the least amount of waste.
• Optimization of waste for the substructure
  Of course, waste optimization can also calculate the best option for the substructure.

Do you have additional products in your range that are not essential for constructing a facade, but would still like to offer them in the configurator?

This can also be activated in the additional menu item “Accessories.” Classic examples include wall formwork sheets, adhesives, paints, etc.

You can download the plan easily and directly from the configurator as a PDF file.

In addition to a summary, you will receive the assembly drawings with dimensions.

The parts and materials list is also included at the end of the PDF.

The entire PDF can be customized. This allows you to decide which content you want to make available.

You also have the option of completely deactivating the PDF download function.

Users of your configurators can always request planning by email.

Here, too, you have complete freedom and can customize the request.

• Freely definable mandatory fields
• Free choice of which content should be shared in the email
• Distinction between the request email sent to you and the one sent to your customer. This allows your customer to receive a different PDF than you (e.g., without prices)

In addition to PDF, the material and cutting lists can also be exported as Excel or CSV files. These can then be imported into third-party systems.

Here, too, you can freely define how the exported files should look.

Every plan can be saved at any time and reloaded later.

This also helps you when customers create a plan and you want to review or correct it.

Any type of interface can be developed freely. Just get in touch with us!

• Import master data into the configurator
• Export material list to your web shop
• Transfer relevant data to your CRM system

Pricing is as individual as each product range and each company.

Therefore, it is always difficult to make a blanket statement about prices.

Just contact me and let's discuss your requirements together. I will then be able to provide you with a very accurate estimate.
