Intuitive 2D configurator for loft and sliding doors

In addition to the structure and design of the system, you can of course also incorporate your own corporate design (CI).

• Custom logo and CI colors
• Custom structure, query sequence, and custom design
• Custom letterhead and email body

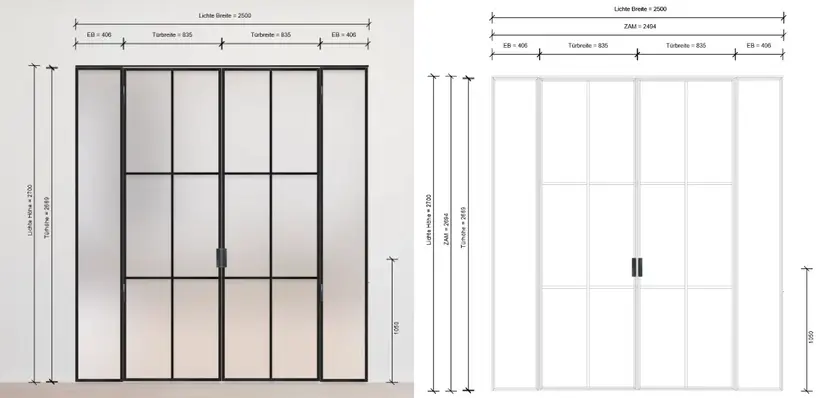

The planning is always displayed in the configurator itself in a realistic 2D scene. In addition to the 2D scene, you will also receive an approval drawing including dimensions in the requested planning documents or in the PDF download.

• Realistic 2D view of the door
• Approval drawing with dimensions

Customize your PDF output file according to your preferences!

• Your own letterhead
• Free choice of what information to display
• Dynamic content
• Multilingual

Adapt your planning to your customers' individual wishes and unique building situations!

• Hinged door
  Classic hinged doors are a must in any configurator. Whether you choose one or two door leaves, planning is child's play.
• Pivot door
  Modern pivot doors can also be designed as single-leaf or double-leaf systems. The special features of this door type will of course be taken into account in the further planning process.
• Sliding door
  Plan your sliding doors including the fittings. The configurator automatically determines the oversize for the door up to the fitting.
• Fixed elements
  Fixed elements can also be planned using the planner to determine prices quickly and intuitively.

When planning doors, it is essential to check the DIN direction!

• Changing the hinge side
  Changing the DIN direction adjusts the hinge side. This naturally affects the production of the door and must therefore also be requested.

The frame also has a major influence on the dimensions of the door and is therefore an essential component of the configurator.

• SLIM frames
• Butt frames
• Rebated frames

Of course, you mustn't forget to enter the dimensions!

• Wall opening dimensions
  All other door dimensions are determined and output based on the wall opening dimensions.
• Auto. Distribution of door divisions
  You can freely decide whether the configurator should automatically divide the glass elements (e.g., for double-leaf systems or side panels) or whether the user should be free to choose the distribution.

One piece? Two pieces? With or without side elements? The configurator offers you and your customers unlimited planning options.

• Fixed elements
  The configurator uses the wall opening dimensions and door width to determine the maximum number of side elements possible without exceeding the minimum dimensions of the glass elements. Based on a stored ratio, the configurator then distributes the width of the elements so that the overall appearance is as harmonious as possible. This automatic function can also be deactivated.
• Number of door leaves
  If you select the double-leaf system, the configurator will divide the available width into two identical parts. The automatic function can of course also be deactivated.

In addition to all the planning options, a plausibility check always runs in the background and validates all entries. In some situations, this may result in additional queries being necessary. Such as the query about existing underfloor heating for a pivot door.

Choose from numerous options to find the glazing bar design that best suits your customer's building situation. The doors and side elements can also be configured separately to create a visual separation.

Do you offer other types of glazing bars that you cannot find in the configurator? No problem, we can expand the selection options as desired.

There are no limits to the color options available in the configurator.

• Profile color
  Define predefined profile colors and let your users try out different colors.
• Glass design
  Do they have specific surfaces that are your burners? Make them plannable in the configurator using the predefined button.
• Free color input
  If you have the option of producing profiles in all colors, you can also incorporate a function into the configurator that allows users to find the desired color using RAL color codes or color values.

The primary function of a door is to open and close. To do this, it must be fitted with the appropriate hardware.

• Fitting types
  Give users of the configurator the opportunity to try out different fittings and find their favorites.
• Individual queries
  Fittings and handles often have special features, such as handle height, etc. Depending on the selection made, the relevant questions appear in the configurator.

If you have accessory products that you want to sell alongside the necessary products for the door, you can make them available and activatable in the configurator.

Examples of this are cleaning agents and products to assist with door installation.

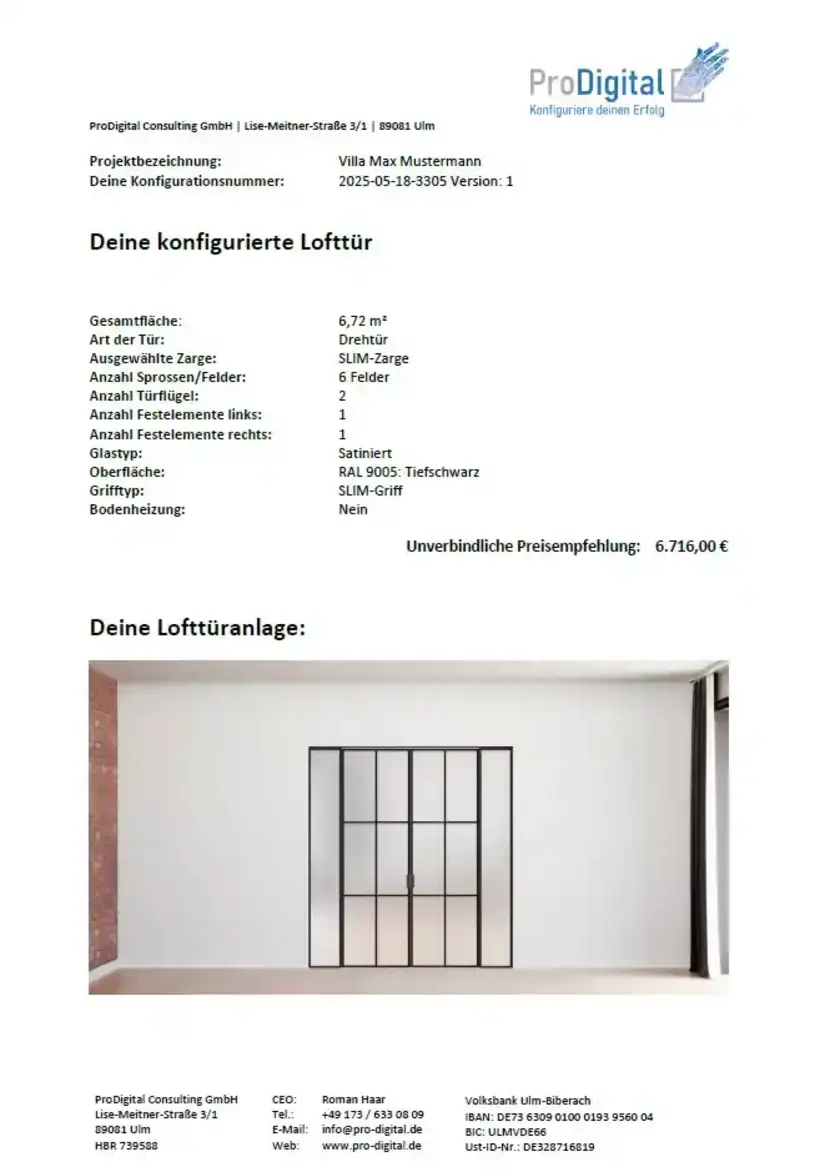

You can download the plan easily and directly from the configurator as a PDF file.

In addition to a summary, you will receive the assembly drawings with dimensions.

The parts and materials list is also included at the end of the PDF.

The entire PDF can be customized. This allows you to decide which content you want to make available.

You also have the option of completely deactivating the PDF download function.

Users of your configurators can always request planning by email.

Here, too, you have complete freedom and can customize the request.

• Freely definable mandatory fields
• Free choice of which content should be shared in the email
• Distinction between the request email sent to you and the one sent to your customer. This allows your customer to receive a different PDF than you (e.g., without prices)

In addition to PDF, the material and cutting lists can also be exported as Excel or CSV files. These can then be imported into third-party systems.

Here, too, you can freely define how the exported files should look.

Every plan can be saved at any time and reloaded later.

This also helps you when customers create a plan and you want to review or correct it.

Any type of interface can be developed freely. Please feel free to contact us for more information!

• Import master data into the configurator
• Export material list to your web shop
• Transfer relevant data to your CRM system

Pricing is as individual as each product range and each company.

Therefore, it is always difficult to make a blanket statement about prices.

Simply contact us and let us work together to identify your requirements. We will then be able to provide you with a very accurate estimate.
