Planning flexibility and reliability with our fence configurator

In addition to the structure and design of the system, you can of course also incorporate your own corporate design (CI).

• Custom logo and CI colors
• Custom structure, query sequence, and custom design
• Custom letterhead and email body

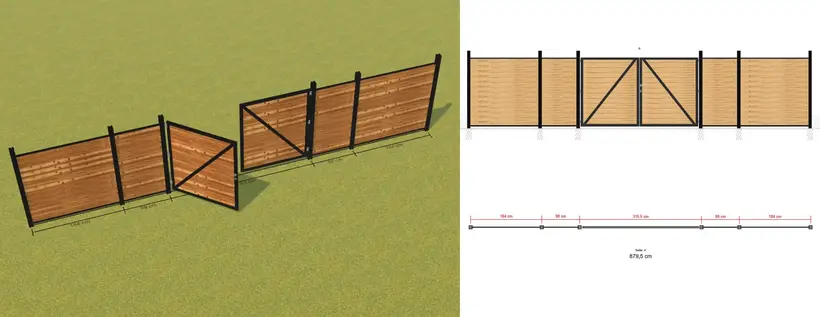

Depending on your preference, you can display the plan in 2D and/or 3D. Different view options allow you to focus on what is important to you.

• 2D view of all elements including slopes and steps
• 3D view of all elements including slopes and steps
• Elements can be shown or hidden for a better overview

Customize your PDF output file according to your preferences!

• Your own letterhead
• Free choice of which information to display
• Dynamic content - depending on the planned screen
• Multilingual

Our freeform drawing allows you to incorporate the diversity of reality into your fence design.

• Genuine freehand drawing without restrictions
• Angle and length correction options
• Subsequent correction using intuitive drag & drop functions for screen elements
• Subsequent addition and deletion of corner points

Calculation logic

• Of course, the planner also takes into account the possibilities of the posts and, if necessary, places a second one if the angle has been chosen in such a way that one post is not sufficient
• If desired, only certain angles can be allowed in the drawing

Even special situations such as gradations and slopes are no problem for our configurator.

• Plan a linear slope or a slope with several intermediate points per planning page
• Plan gradations
• The material requirements are taken into account and adjusted accordingly

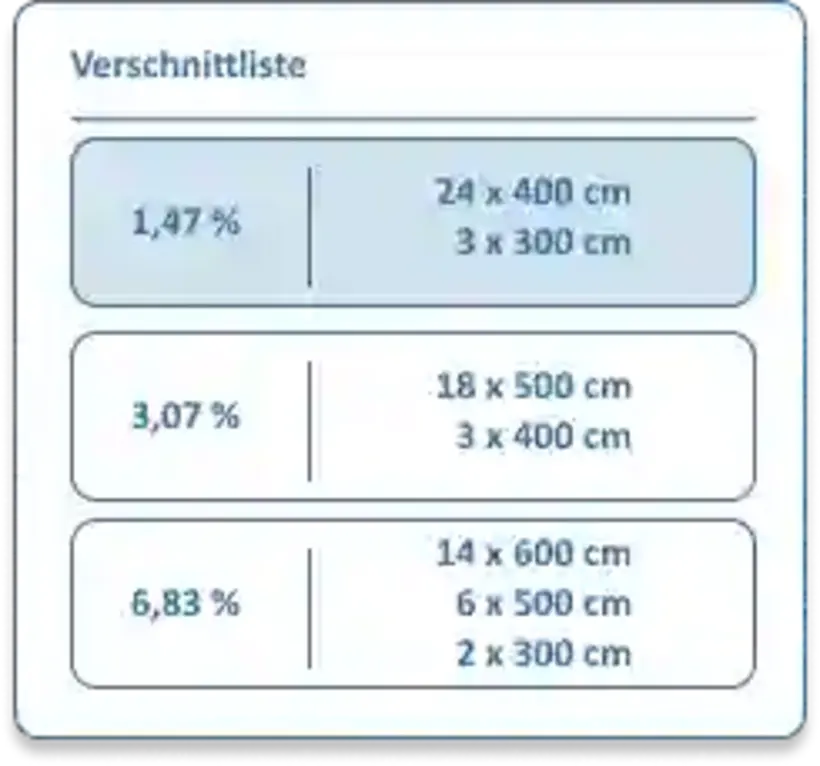

Some elements cannot be easily cut to size (e.g., glass elements). Others, however, are perfect for calculating in the configurator with optimized cutting. The master data can be used to define how the configurator should handle and calculate each product.

Do you have additional products in your range that are not essential for building a privacy screen system, but would still like to offer them in the configurator?

This can also be activated in the additional menu item “Accessories.” Classic examples include oils, paints, cleaning agents, and much more.

Wall mounting, set in concrete or screwed in place – select the fastening method for your posts in the planner. The main fastening method can be selected as standard for planning purposes. You can then change the fastening method for each post as desired at a later date.

Do you have light profiles for your fence systems in your product range? The configurator can handle that too, no problem.

• Light profiles in posts
  Plan light profiles in the groove cover strips. This can be done globally for the entire project or for individual posts.
• Light profiles between the panels
  Light profiles can also be planned between the panels.
• Lighting display in 3D
  The planned lights are also visualized in the 3D scene. Once lights have been planned, a day/night switch appears, allowing you to darken the surroundings so that the light stands out better.

A good fence system often includes a door or gate. The configurator allows you to plan and visualize this.

• Designing single- or double-leaf systems
  Design both single- and double-leaf systems to offer maximum variety.
• Specify DIN direction and door handles
  In addition to the dimensions of the system, you can also specify detailed parameters such as the DIN direction or the position of the door handles. This is visualized in real time in the configurator.
• More stable posts for gate systems
  As a rule, more stable posts are required for gates to ensure that the system remains stable. The configurator knows this automatically and makes the necessary changes in the material specification.

Shape definitions via Google Maps are no problem for our fence configurator.

While drawing the basic shape, you can optionally switch to Google Maps and select the desired area with a few simple mouse clicks. The dimensions are then transferred automatically.

Of course, our configurator also allows you to plan empty sections, for example to leave space for bushes or shrubs. If desired, this can also change the number of groove cover strips.

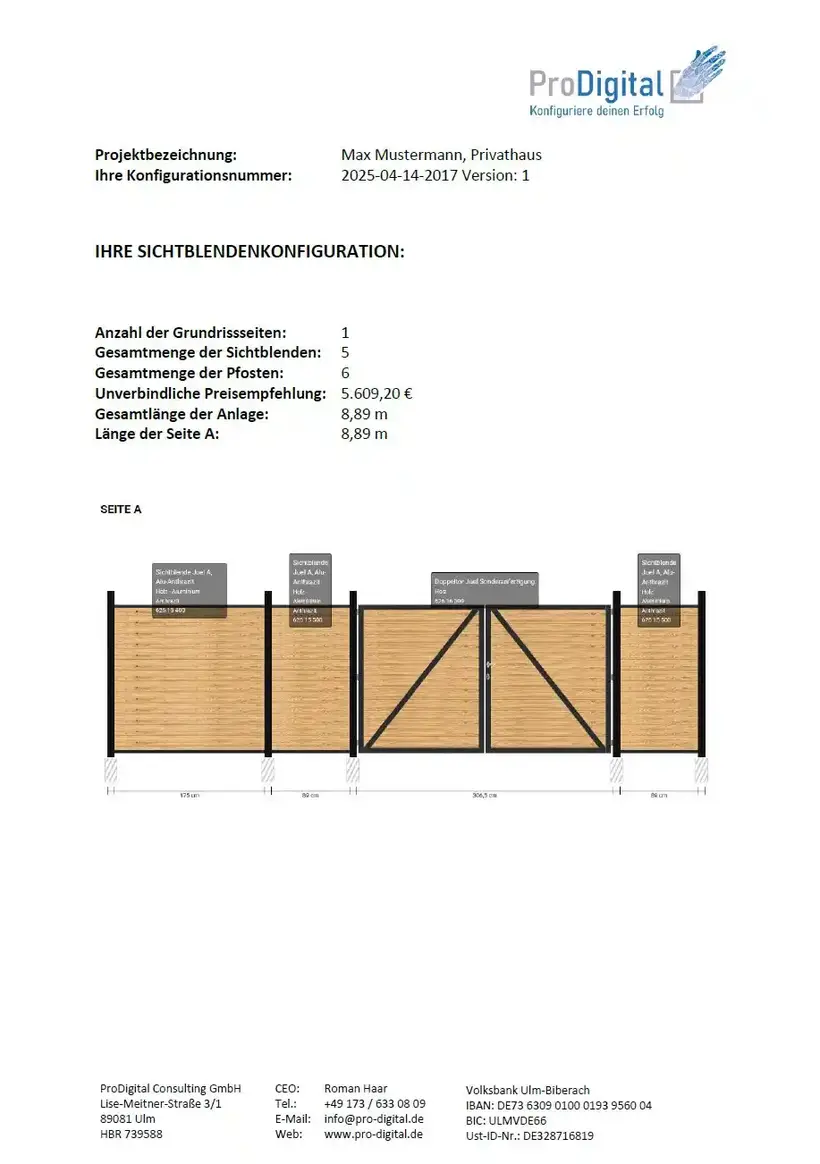

You can download the plan easily and directly from the configurator as a PDF file.

In addition to a summary, you will receive the assembly drawings with dimensions.

The parts and materials list is also included at the end of the PDF.

The entire PDF can be customized. This allows you to decide which content you want to make available.

You also have the option of completely deactivating the PDF download function.

Users of your configurators can always request planning by email.

Here, too, you have complete freedom and can customize the request.

• Freely definable mandatory fields
• Free choice of which content should be shared in the email
• Distinction between the request email sent to you and the one sent to your customer. This allows your customer to receive a different PDF than you (e.g., without prices)

In addition to PDF, the material and cutting lists can also be exported as Excel or CSV files. These can then be imported into third-party systems.

Here, too, you can freely define how the exported files should look.

Every plan can be saved at any time and reloaded later.

This also helps you when customers create a plan and want to review or correct it.

Any type of interface can be developed freely. Just get in touch with us!

• Import master data into the configurator
• Export material list to your web shop
• Transfer relevant data to your CRM system

Pricing is as individual as each product range and each company.

Therefore, it is always difficult to make a blanket statement about prices.

Simply contact us and let us work together to identify your requirements. We will then be able to provide you with a very accurate estimate.
